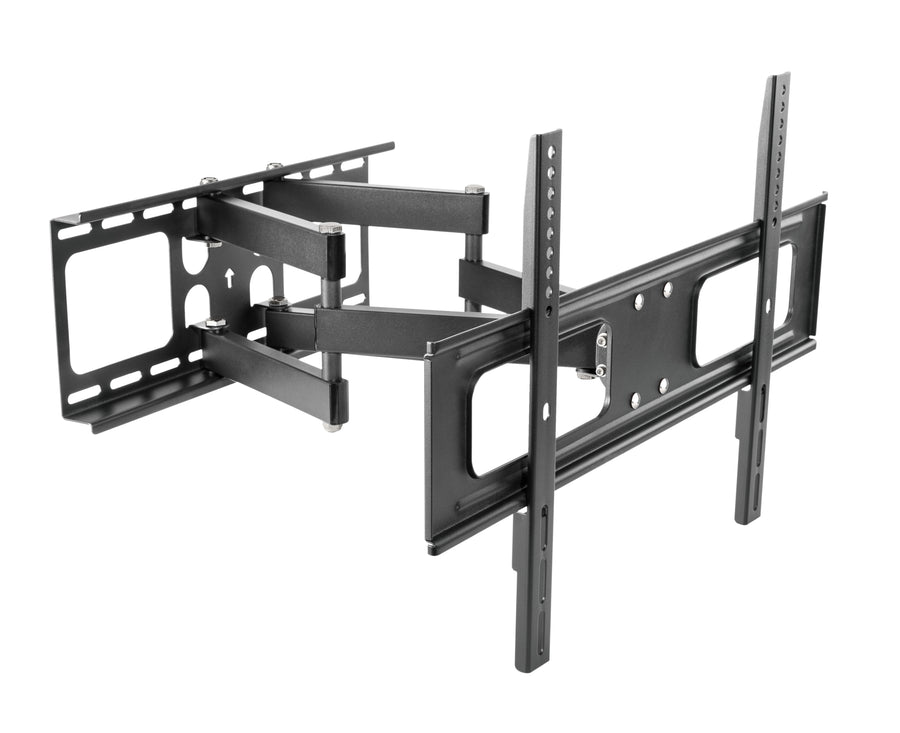

ProofVision Outdoor TV Articulating Wall Mount
Regular price
Starting price $999.00 inc. VAT
per
Out of stock
The ProofVision Outdoor Articulating Wall Mount is a full-motion outdoor TV wall mount designed for residential outdoor environments and compatible with ProofVision TVs from 43” to 75”. Engineered for outdoor use, it features an electroplated and high-grade powder-coated finish to help resist scratches and rust, while stainless steel screws provide added protection against salt air. The mount offers tilt, swivel, and screen leveling adjustments for flexible viewing angles. Supporting VESA patterns up to 600x400, the articulating design allows extension from 64mm to 510mm, making it suitable for patios, gardens, terraces, and outdoor entertainment spaces.
Designed specifically for outdoor TV installations
Supports ProofVision TVs from 43” to 75”
Electroplated and powder-coated finish
Stainless steel screws for added corrosion resistance
Full-motion tilt and swivel adjustment
Extends from 64mm to 510mm from the wall
Screen leveling adjustment for precise positioning
Specifications
Display Compatibility
- Screen Size Support: 37”–86”
- Compatible with Curved TVs: Yes
- Mounting Pattern: VESA & Universal
- VESA Compatibility: 200x200 to 600x400
Build & Materials
- Material: Steel
- Surface Finish: Powder Coating, Electroplating
- Colour: Black
- Dimensions: 510 x 660 x 430mm (20.1" x 26" x 16.9")
Movement & Adjustment
- Full-Motion Articulating Design
- Tilt Range: +10° to -20°
- Swivel Range: +60° to -60°
- Screen Level Adjustment: +3° to -3°
- Extension Range / Profile: 64mm–510mm (2.5” - 20.1”)
Installation & Mounting
- Installation Type: Solid Wall, Double Stud (406mm / 450mm)
- Wall Plate Type: Fixed Wall Plate
- Panel Type: Detachable Panel
Additional Features
- Stainless Steel Screws
P
r
e
m
i
u
m
O
u
t
d
o
o
r
F
e
a
t
u
r
e
s
D
e
s
i
g
n
e
d
f
o
r
F
l
e
x
i
b
l
e
V
i
e
w
i
n
g

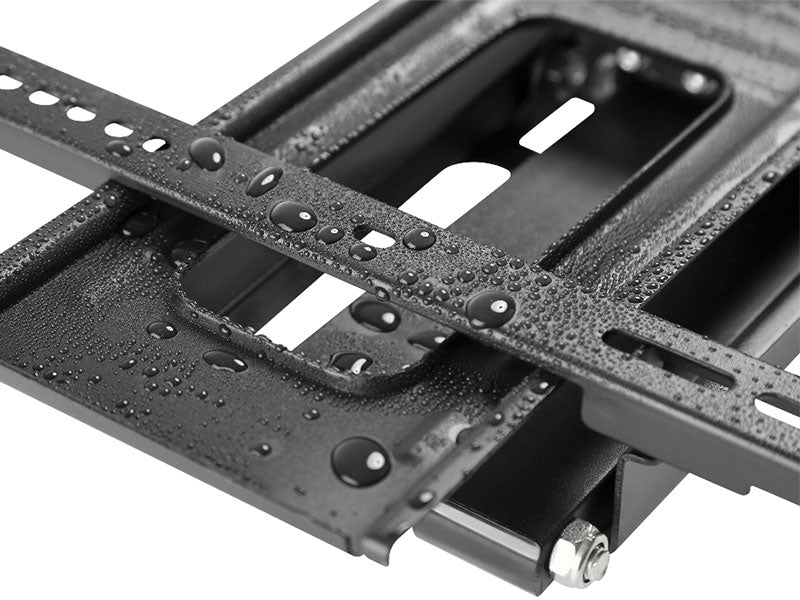

Built for Outdoor Environments
Engineered specifically for outdoor TV installations, the mount features an electroplated and powder-coated finish designed to help resist scratches, rust, and outdoor exposure.

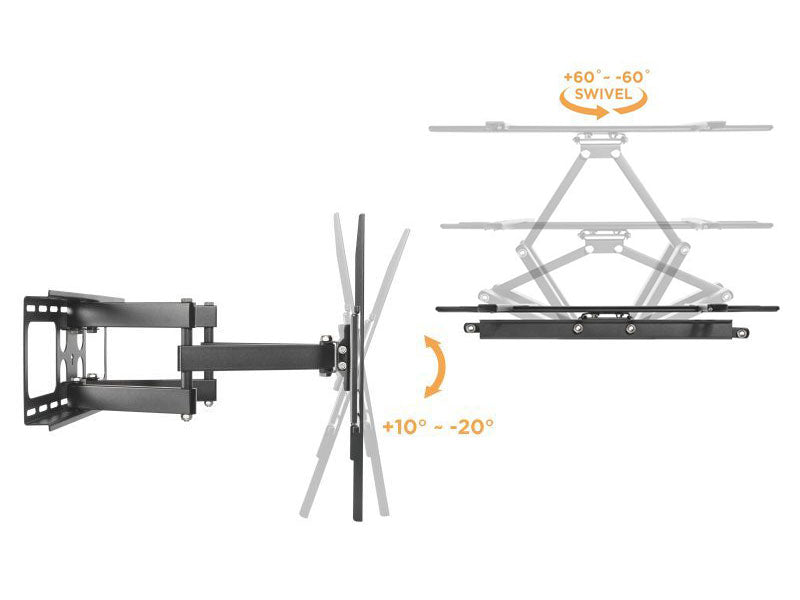

Smooth Full-Motion Adjustment
The articulating arm provides flexible tilt, swivel, and extension movement, making it easy to adjust your TV for a more comfortable viewing position.

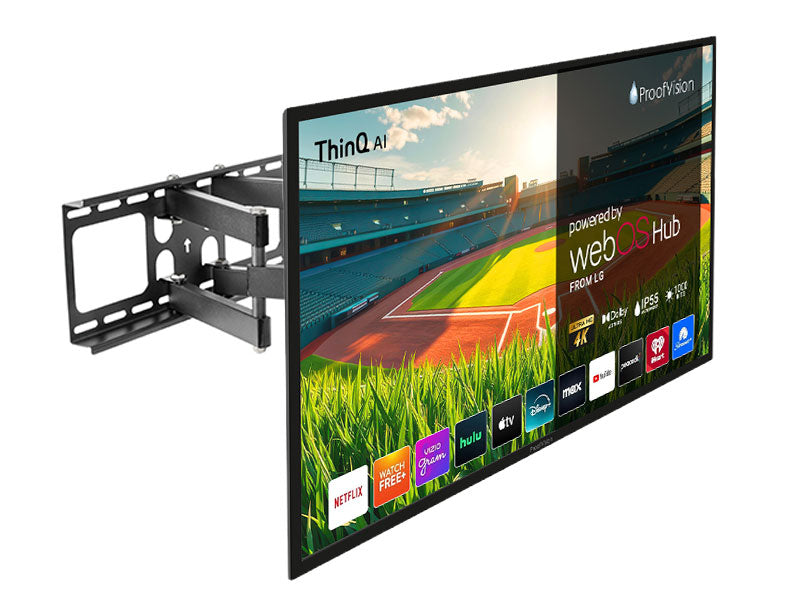

Supports Large Outdoor TVs
Designed to support ProofVision TVs from 43” to 75”, delivering secure support for our range of outdoor displays.

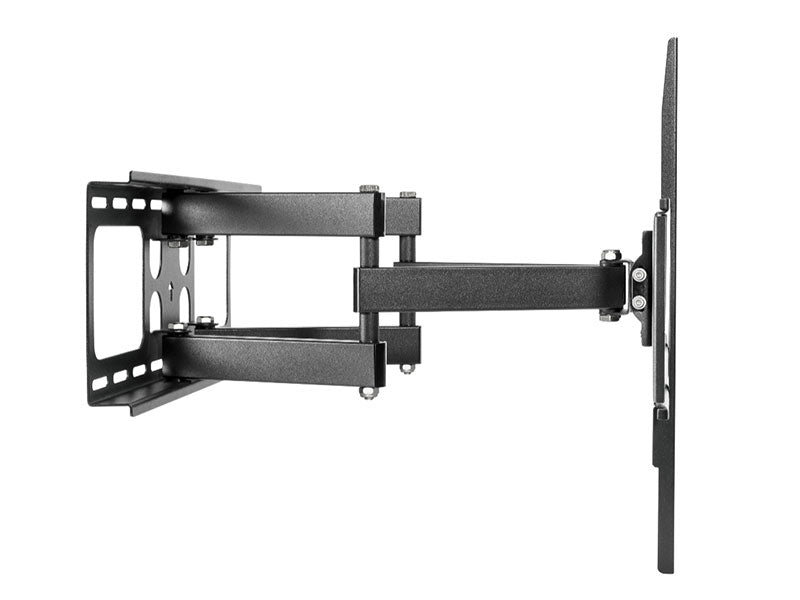

Extended Viewing Flexibility
With an extension range from 64mm to 510mm from the wall, the mount allows flexible positioning while keeping a low-profile appearance when retracted.

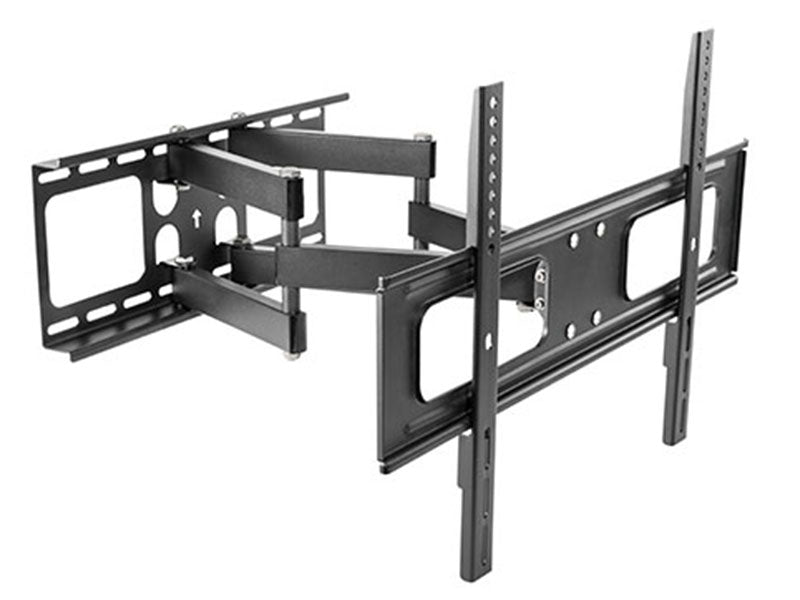

Precision Screen Positioning
Built-in screen leveling adjustment allows the TV to be fine-tuned after installation, helping achieve a perfectly aligned viewing setup.

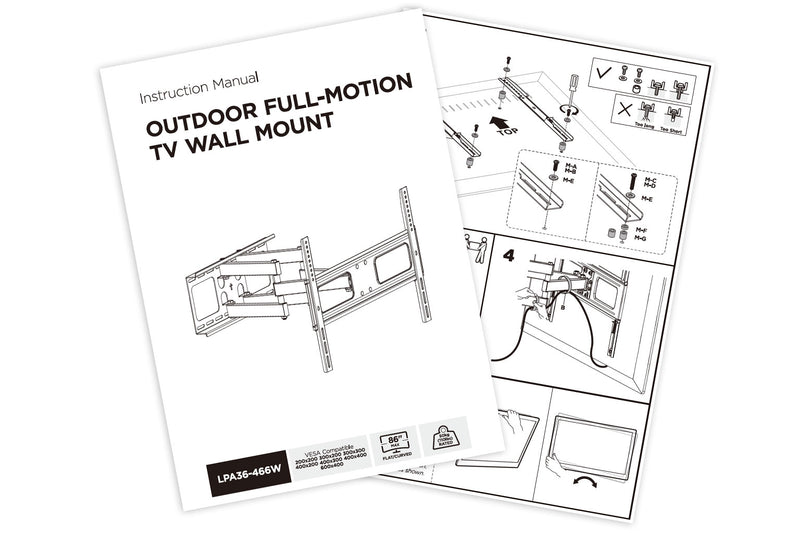

Download user manual (PDF)
Includes complete assembly guide and safety instructions.
FAQ
What size ProofVision TVs are compatible with this outdoor TV wall mount?
This outdoor articulating TV mount supports ProofVision TVs from 43” to 75” and is compatible with a wide range of VESA mounting patterns up to 600x400.
Does this outdoor TV wall mount swivel and tilt?
Yes, the full-motion design allows the TV to tilt from +10° to -20° and swivel from +60° to -60° for flexible outdoor viewing angles.
Can the TV be adjusted after installation?
Yes, the mount includes screen leveling adjustment of +3° to -3°, allowing the TV to be fine-tuned after installation for a more precise and level viewing position.
Is the hardware suitable for outdoor environments?
Yes, all screws are made from stainless steel to provide added protection against moisture and salt air in outdoor environments.
How far does the TV mount extend from the wall?
The articulating arm extends from 64mm to 510mm (2.5” to 20.1”) from the wall, allowing flexible positioning while maintaining a low-profile appearance when retracted.
